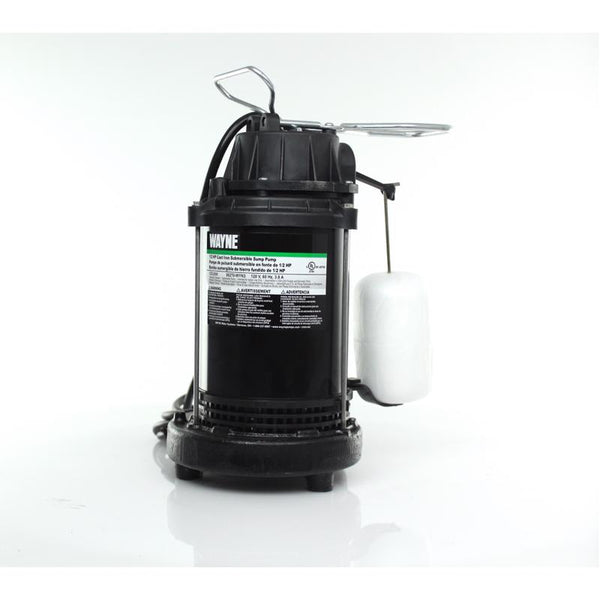

Wayne 1/2 HP 5,100 gph Cast Iron Vertical Float Switch AC Submersible Sump Pump
View product details
Wayne 1/2 HP 5,100 gph Cast Iron Vertical Float Switch AC Submersible Sump Pump
View product details
Sold out
$220.49
/each
Prices are subject to change once back in stock
Wayne's CDU800 features a durable cast iron base and epoxy-coated housing for long life and quiet operation. This submersible pump is designed for small sump pits, as small as 11 inch, the CDU series is one of the most popular replacement sump pumps in America. The ceramic mechanical seal assures long life in the most demanding applications and the 1-1/2 inch discharge allows easy installation. This powerful 1/2 HP sump, pumps up to 4200 GPH.
Wayne's CDU800 features a durable cast iron base and epoxy-coated housing for long life and quiet operation. This submersi...
See more
Product Details
California residents see
-
Prop 65 WARNINGSProp 65 WARNINGS Prop 65 WARNINGS: This product can expose you to chemicals including diethylhexyl phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
UPC
040066100092
Manufacturer Part No
CDU-800
Brand Name
Wayne
Horsepower
1/2 hp
Housing Material
Plastic
Maximum Discharge Flow
5100 gph
Submersible
Yes
Product Type
Sump Pump
Minimum Temperature
40
Assembled Height
60 in.
Assembled Width
60 in.
Assembled Length
10 in.
Power Source
AC
Packaging Type
Boxed
Maximum Feet of Head
20
Minimum Sump Pit Diameter
11
Switch Off Height
4 in.
Switch On Height
9 in.
Sump Pump Outlet Diameter
1-1/2 in.
Self Priming
Yes
Maximum Pumping Height
22 ft.
Voltage
120 volt
Pump Switch Type
Vertical
CSA Listed
Yes
UL Listed
Yes
Turn On Level
9
Maximum Temperature
110
Turn Off Level
4
Battery Backup
No
Cord Length
8 ft.
Amperage
10 are
Height
14
Maximum Discharge Flow
5,100 gph
Maximum Temperature
110 deg. F
Height
14 in.
Minimum Temperature
40 deg. F
Maximum Feet of Head
20 ft.
Turn On/Off Level
9 in./4 in.
Housing Material
Thermoplastic
Pump Switch Type
Vertical Float Switch
Volts
120 volt
Discharge Flow at 10 ft.
3840 gph
Discharge Flow at 20 ft.
2040 gph
Agency Compliance
CSA and UL
Discharge Flow at 25 ft.
0 gph
Housing Material
Cast Iron
Powered By
AC
Product Type
Submersible Sump Pump
Amps
10 amps
Depth
10 in.
Width
10 in.
Horsepower
1/2 HP
Maximum Temperature
110 °F
Minimum Temperature
40 °F
Volts
120 V
View more
Package Dimensions
Weight (lb)
18.8
Length (in.)
10.1
Width (in.)
10.1
Height (in.)
14.1
